Description

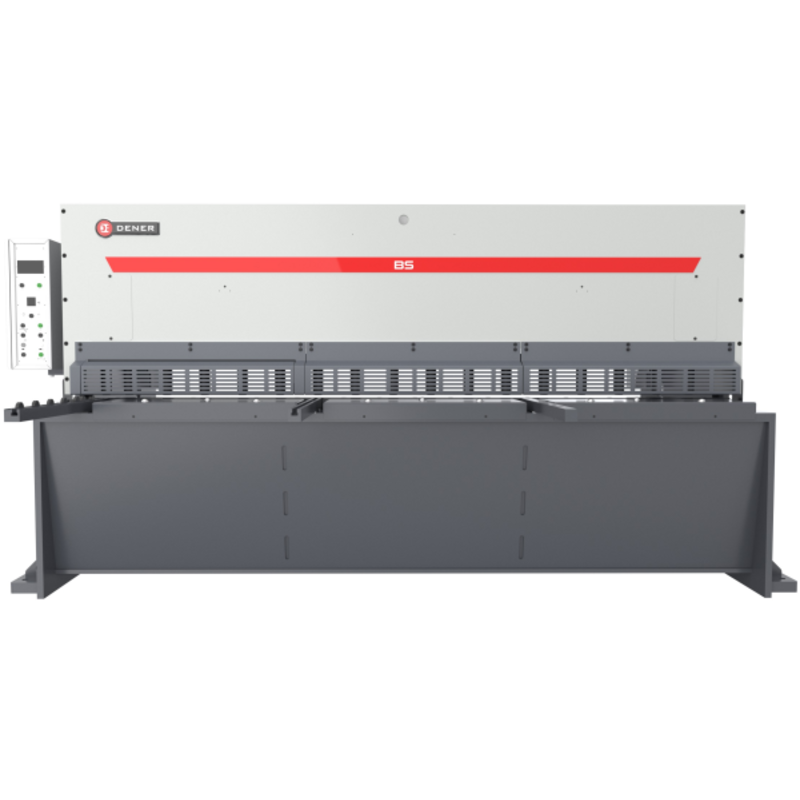

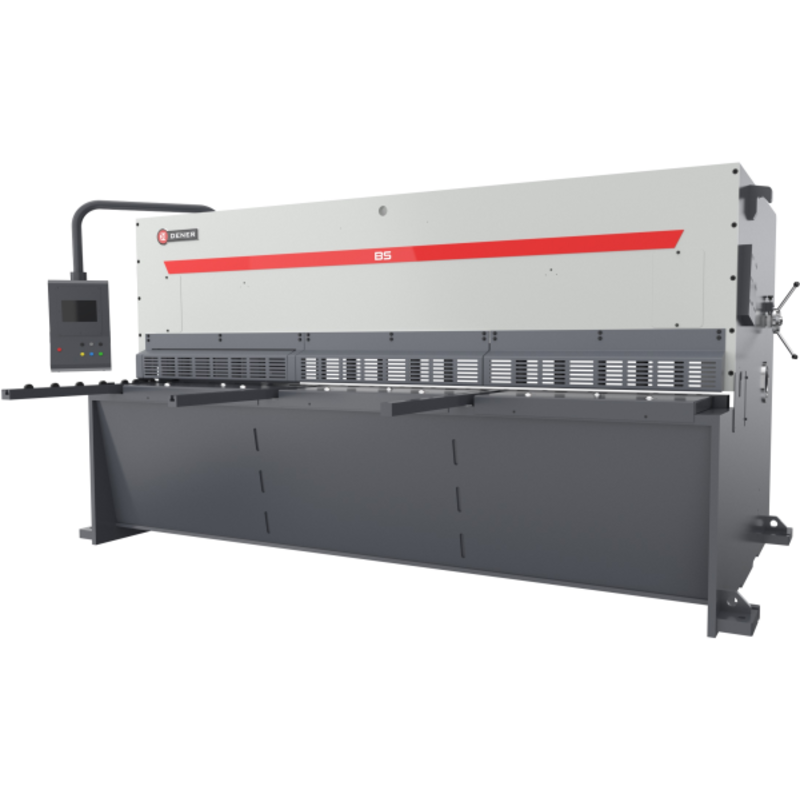

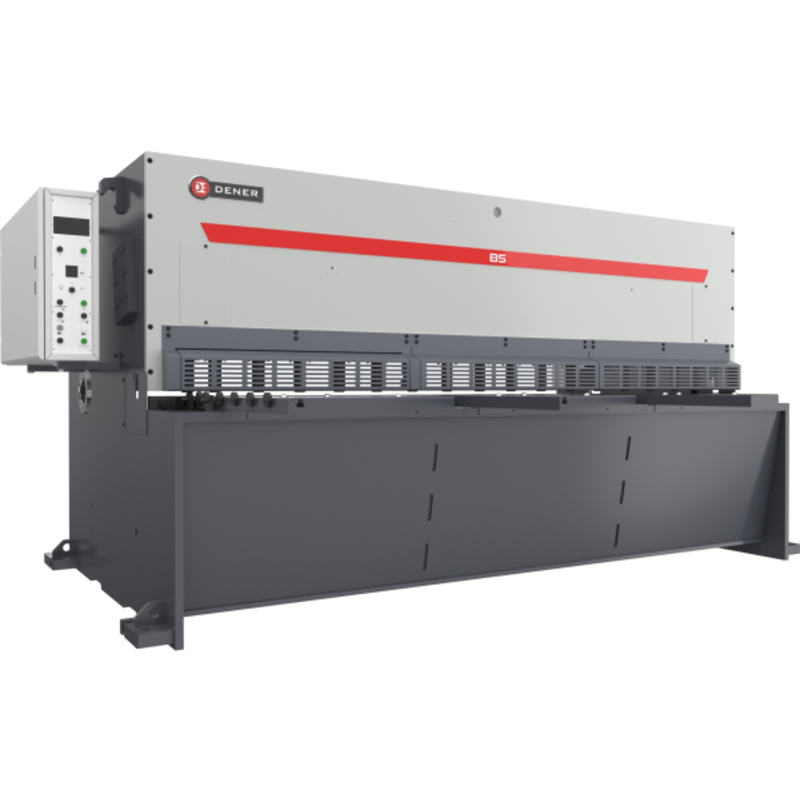

DENER Guillotine Shear BS are so-called oscillating shears, due to the upper beam tilting around a pivot point. These are plate shears with a simple and robust construction and especially suitable for intensive use in somewhat rougher production environments. Due to the fixed and relatively large cutting angle, they are less suitable for cutting thin sheet metal, as they are somewhat more deformed. For cutting thin and thick sheets on the same shear, the Dener-AS type is more suitable due to the adjustable cutting angle and the straight-line movement of the upper beam.

Standard equipment:

• Dener HT071 NC control
• Automatic cutting gap adjustment
• Automatic stroke adjustment
• Fixed cutting angle
• Support table equipped with ball pots
• 1000 mm backgauge with ball screws and AC motor
• Finger guard that folds open
• 1-metre-long right-angle support arm on the left front side with T-slot, including stop bracket and ruler
• 2 additional support arms of 1 metre length
• Illuminated cutting line / shadow line with LED lighting
• Hydraulic downriggers
• Hardened and ground top with 2 cutting edges
• Hardened and ground bottom with 4 cutting edges
• Sturdy frame, welded and machined
• Sloping chute at rear of shears
• Security rear cage construction with 2 photo cells
• Foot pedal with emergency stop
• Electrical connection 400V, 50 Hz 3 phases
