Description

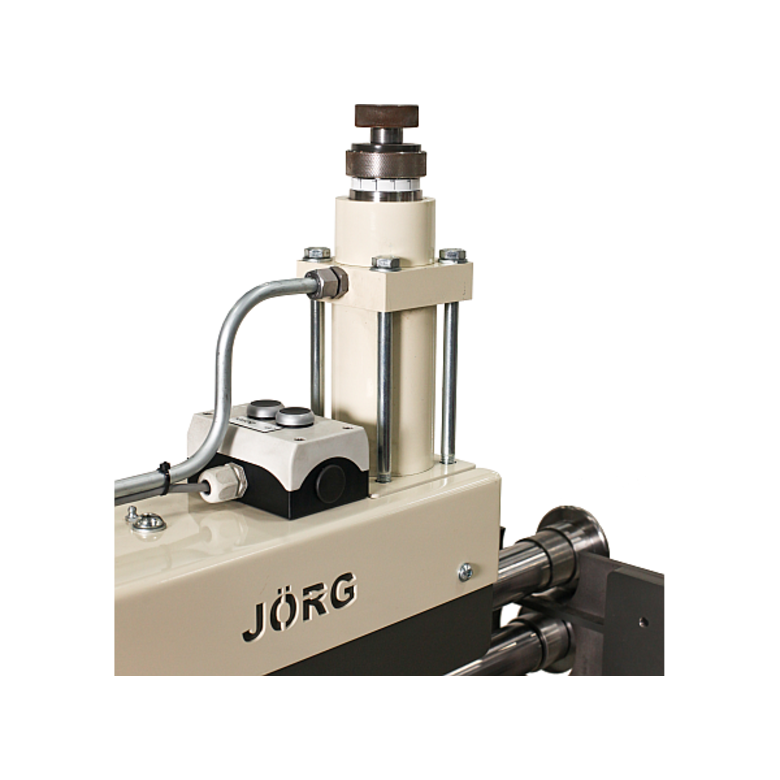

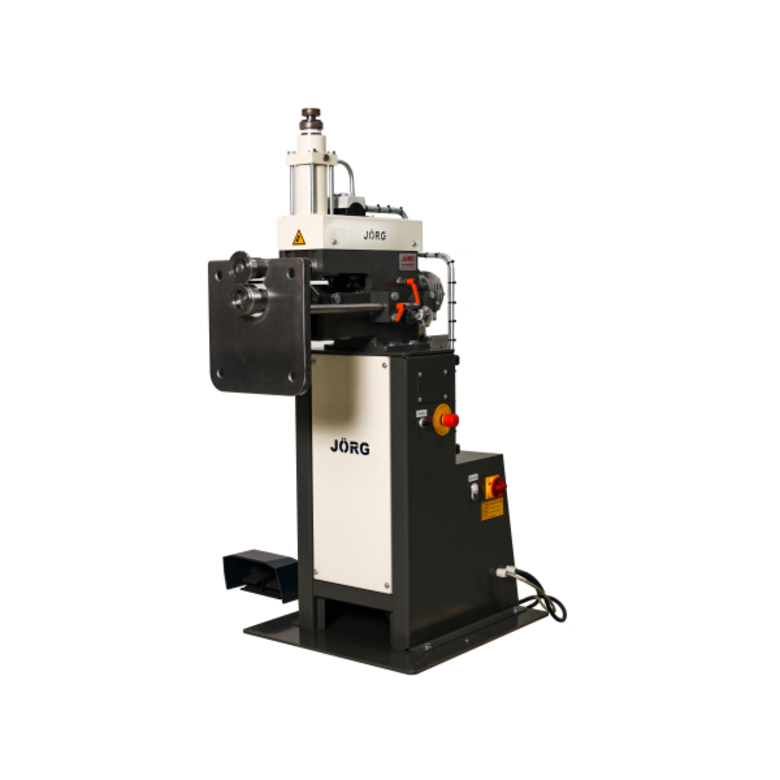

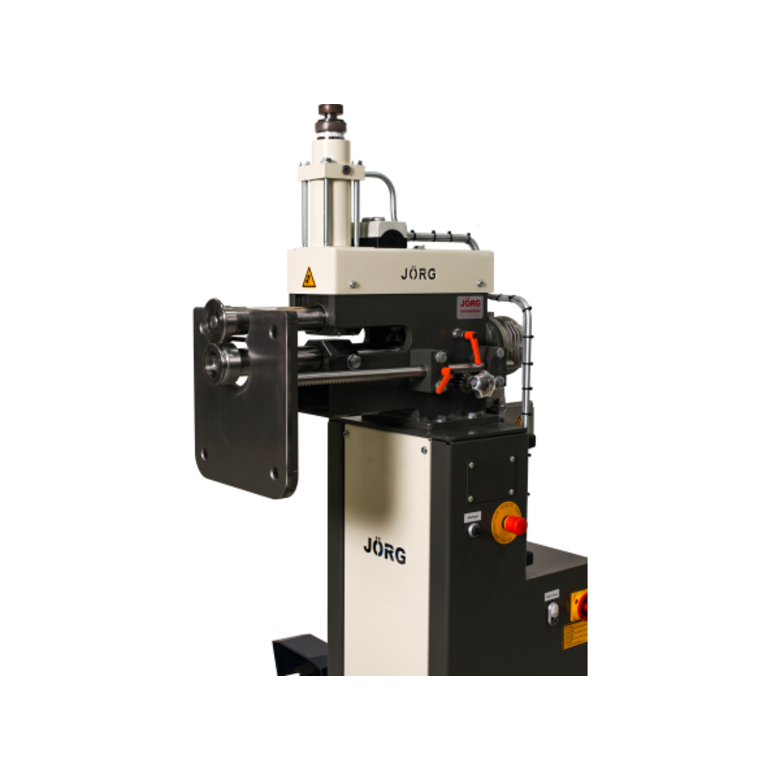

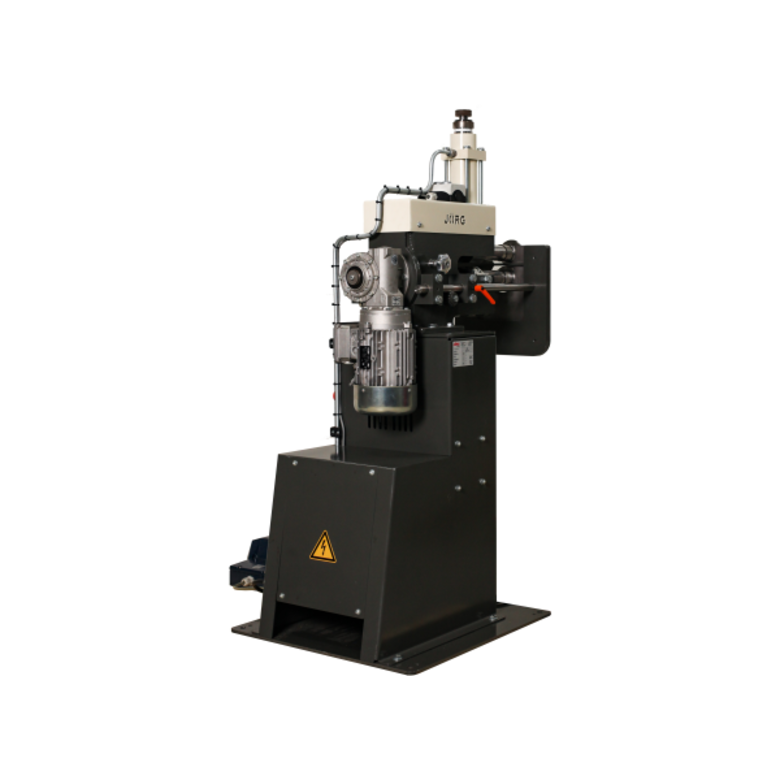

The JÖRG Swaging Machine 5360 is suitable for heavy-duty work with its sturdy and robust welded construction. All rotating parts are precisely machined. This machine is particularly stable and reliable, with a long lifespan. Both shafts are powered by a 1.5 kW AC motor, separate motor of 1.5 kW for optional hydraulic clamping. Complete with double foot pedal, adjustable guage and hardened stop plate. Excluding optional rolls. The top roll can be axially adjusted with a rack, while the height of the top roll is adjustable with a spindle. The hydraulic adjustment of the top roll with two push buttons is optional, but recommended for this heavy-duty machine. Various rolls are available as option.

Standard version:

• Hardened shafts with needle bearings
• Including large footplate
• Standard supplied with hardened gauge
• Moveable by crane/forklift using an lifting eye

Operating convenience:

• Adjustment of the gauge with a rotary knob
• Solid stand with optional hydraulic tank on the back side
• Variable speed due to frequency control

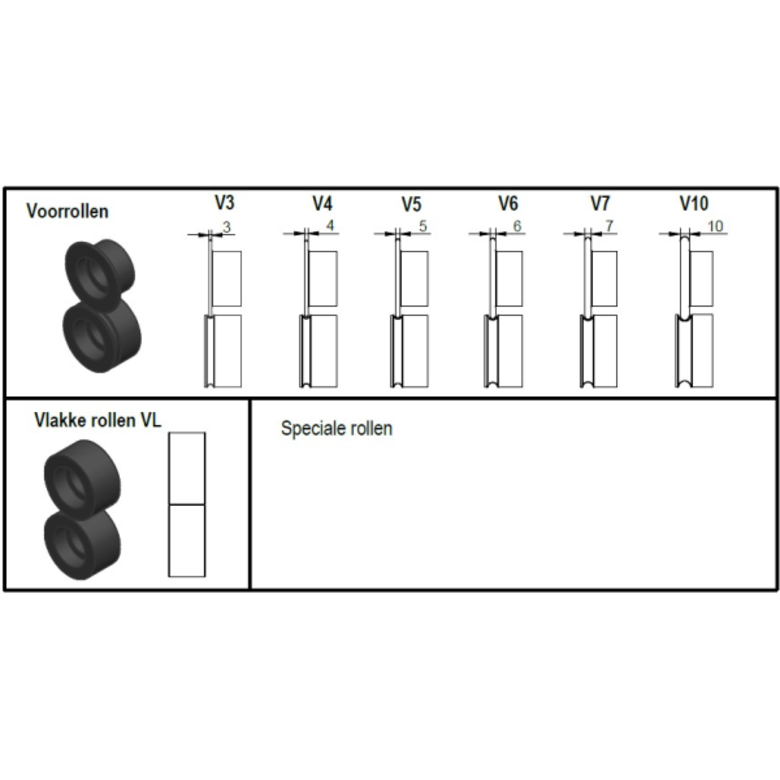

• Swaging rolls are optional available

Made in the Netherlands!

There are several special rolls available on request.
