Description

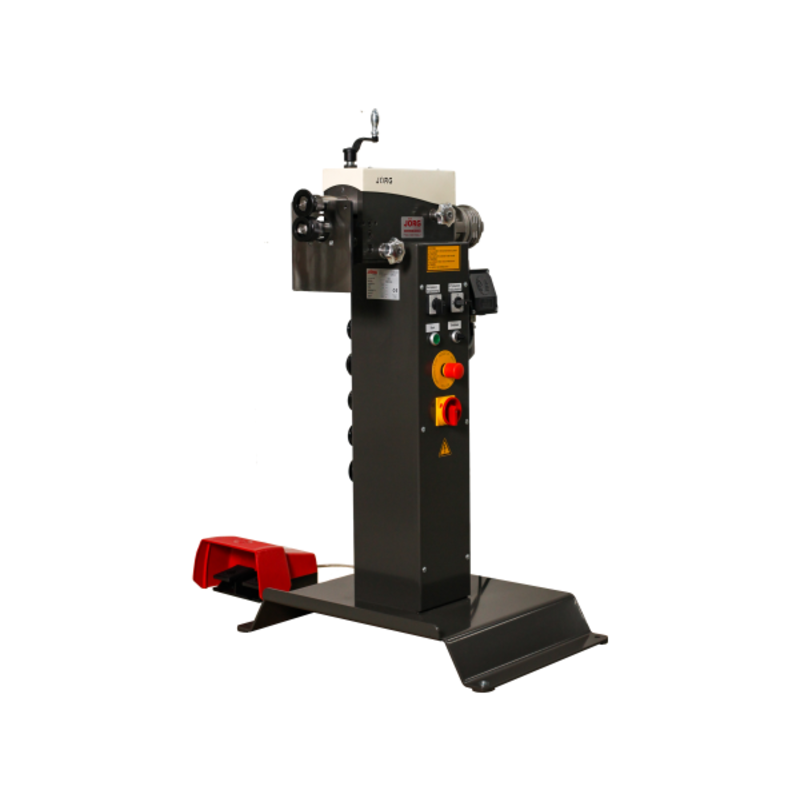

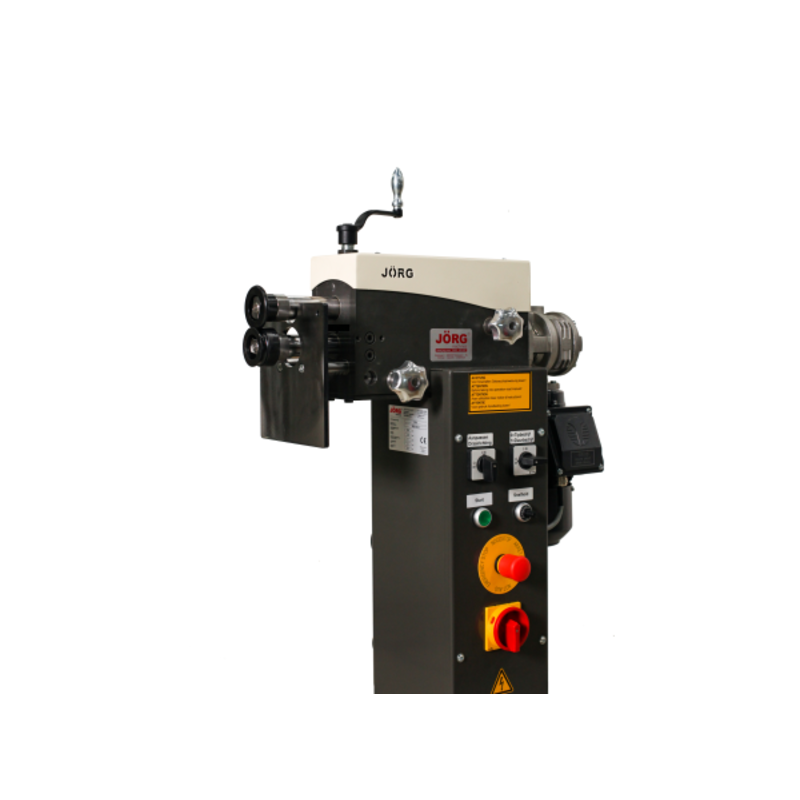

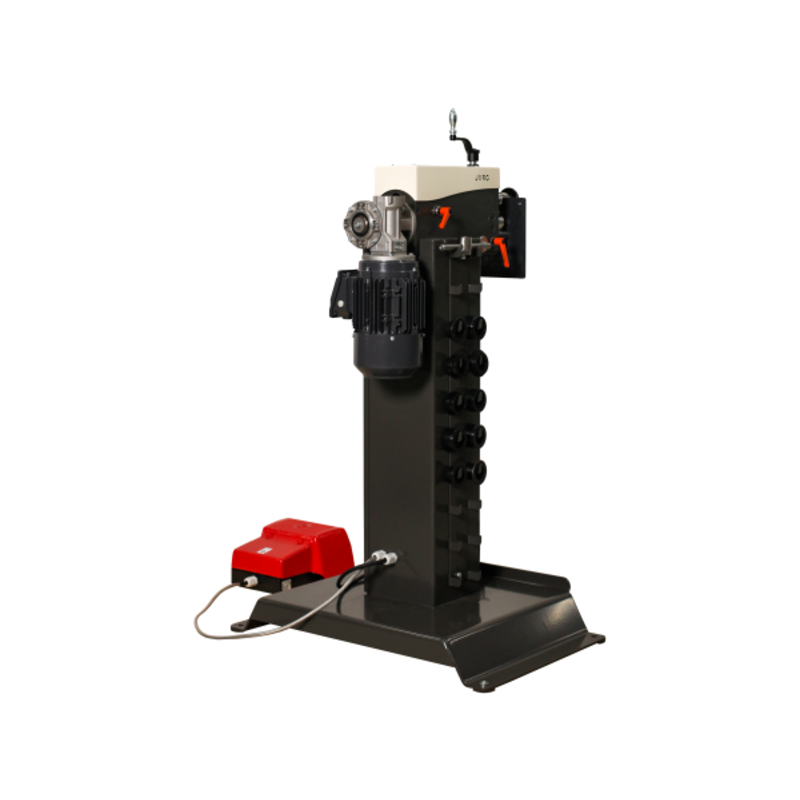

The JÖRG Swaging Machine 5330 IsoProf is specially designed for the intensive insulation cladding. During the development of this machine, the focus was on user-friendliness, productivity, power, and quality. As a result, this machine is ideal for quickly and accurately tube forming. The large knobs on the machine make it easy to adjust quickly and easily. This swaging machine has been carefully made by JÖRG and comes standard with 13 rolls.

Features of user-friendliness:

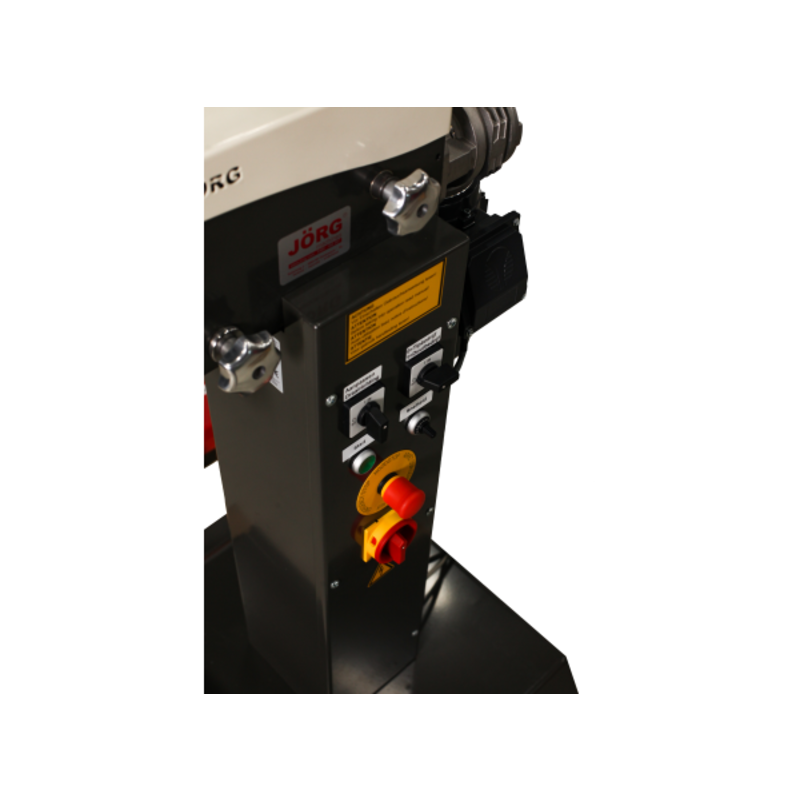

• Adjustment of the stop with a large rotary knob
• Base suitable for a pallet truck
• Variable speed due to frequency control
• Rack for hanging 18 rolls and the key on the swaging machine

Quality features

• Solid construction
• Self-greasing bearings
• Heavy shafts

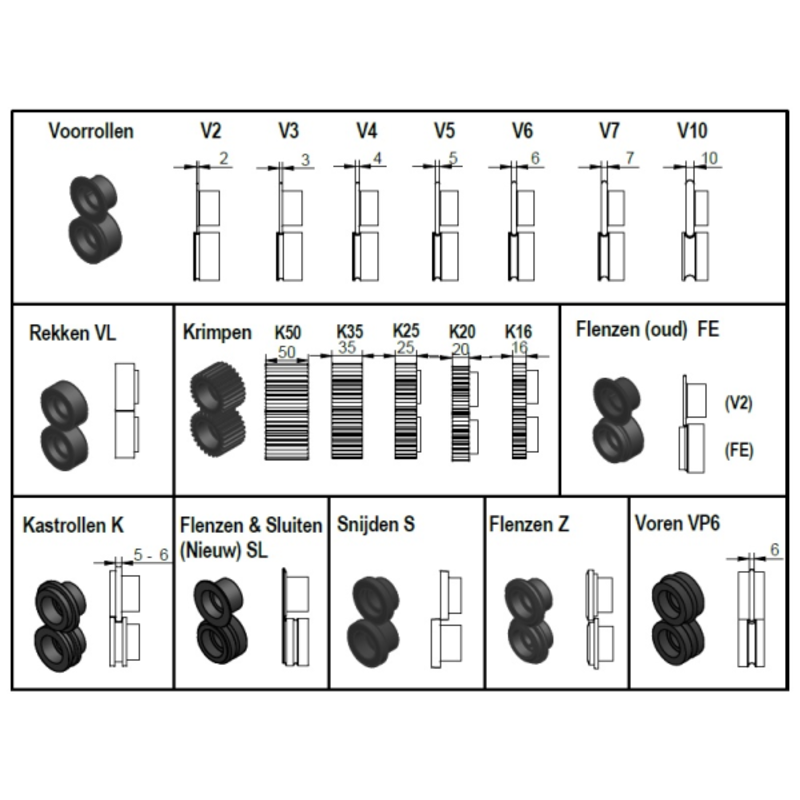

• Standard with 13 rolls, rolls V2, V2s, V4, V7, SL, VL, K6
• Precise adjustable Hardened gauge
• Optional rolls available

The rollers are interchangeable with other swaging machines from JÖRG, types 5310, 5320, 5323, 4302, and 4302/E. In addition to the standard rollers, various special rollers are available.

Designed and manufactured in the Netherlands!
