Our swing beam shears, including the Schwartmanns Swing Beam Shear WST 1 and the JÖRG Swing Beam Shear 4111, are designed to meet the high demands of any production environment, delivering reliable and precise results.
High-quality swing beam shears
JÖRG Machines offers a diverse range of swing beam shears, each with unique features to meet different cutting needs. The Schwartmanns Swing Beam Shear WST 1 has a cutting capacity of 1020 mm x 1.5 mm (St. 37). Its back gauge has a range of 0-550 mm and can be adjusted via a handwheel at the front. The JÖRG Swing Beam Shear 4111 offers the same cutting capacity of 1020 mm x 1.5 mm (St. 37) but features a larger back gauge range of 0-680 mm.
Technological features and innovations

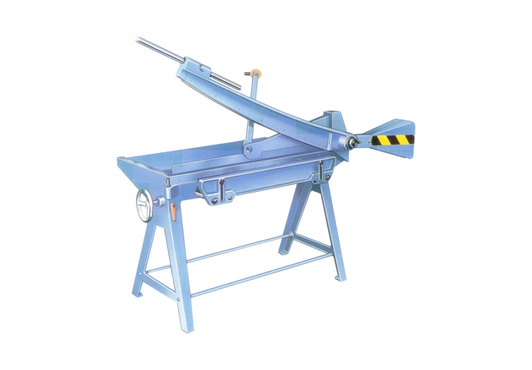

JÖRG Machines' swing beam shears are equipped with user-friendly features that ensure high precision and efficiency. The Schwartmanns Swing Beam Shear WST 1 includes a spring-loaded stop and a quick-clamping system. Its 660 mm long angular guide on the table ensures precise cuts.

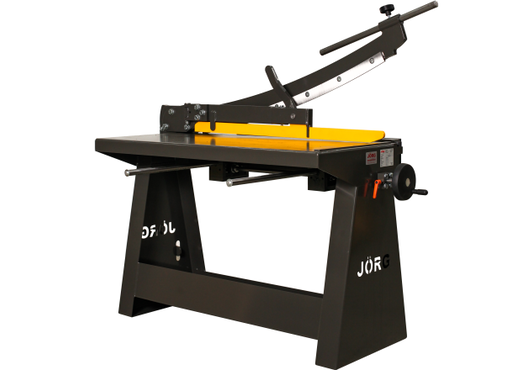

The JÖRG Swing Beam Shear 4111 has a lockable back gauge for consistent cuts. The high-quality blades come pre-installed and maintain their sharpness for extended periods. Additionally, the swing beam is light to operate due to a gas spring system. The machine's compact design eliminates the need for a counterweight. It is also equipped with an open hold-down clamp that securely grips the sheet, which can be swiveled as needed. Both models prioritize ease of use and efficiency, making them ideal for any production setting.
Durability and reliability
JÖRG Machines' swing beam shears are built for long-term performance. The robust construction of the Schwartmanns Swing Beam Shear WST 1 and the JÖRG Swing Beam Shear 4111 ensures a long lifespan, even under intensive use. Unlike cast iron machines, the JÖRG Swing Beam Shear 4111 is made from structural steel, which prevents cracking under impact or heavy loads. This makes the shear highly durable and suitable for any production environment.
Safety and user-friendliness
Safety and ease of use are critical for any machine in the metalworking industry. The Schwartmanns Swing Beam Shear WST 1 and the JÖRG Swing Beam Shear 4111 feature intuitive controls and safety mechanisms that minimize the risk of accidents. The easy adjustment of the back gauge and the efficient clamping systems allow operators to work quickly and safely.
